Bindings

Bindings are actions/functions that can be triggered by hitting a key (or key combination) or mouse buttons. These bindings can be used to launch programs, run buit in functions (like Maximize or Iconify), or even run custom functions. This how to configure FVWM to react to key presses and mouse clicks.

Basics

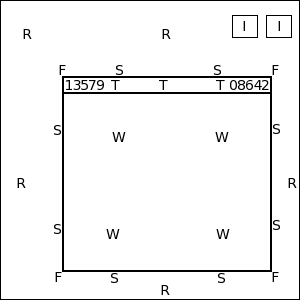

Whenever a key is pressed or a mouse is clicked Fvwm takes note of the current location of the mouse. This is important because Fvwm needs to know where the mouse was clicked, such as on the title bar or a paticular window button. To understand how these work, lets first look how a typical screen with one Window and two Iconified Windows is set up. As shown in the figure below FVWM divides the screen up into the following regions.

window layout

Any Fvwm command (including custom functions) can be triggered by a binding. The configuration syntax for Key and Mouse bindings is

Key Name Context Modifier Command
Mouse Button Context Modifier Command

The Context describes the current location of the mouse (as shown above). The Context can contain any number of possible locations such as “TWF” will be either the Titlebar, Window or Frame corerns.

The Modifier is any additional key that is required to be pressed in addition to the desired Key press or Mouse click (such as in Ctrl-Q the Ctrl key is the modifier to the Q key). The valid Modifiers are:

Modifiers can be any combition of the valid modifiers to provide even more control, for example the modifier ‘CM’ means that both the Ctrl and Meta key must be pressed in addition to the binding. Below is a nice little ASCII diagram you can put in config file to keep look this info up when making bindings:

###########
# Contexts:
# R = Root Window             rrrrrrrrrrrrrrrrrrrrrr
# W = Application Window      rIrrrrFSSSSSSSSSFrrrrr
# F = Frame Corners           rrrrrrS13TTTT642Srrrrr
# S = Frame Sides             rIrrrrSwwwwwwwwwSrrrrr
# T = Title Bar               rrrrrrSwwwwwwwwwSrrrrr
# I = Icon                    rIrrrrFSSSSSSSSSFrrrrr
#                             rrrrrrrrrrrrrrrrrrrrrr
#
# Numbers are buttons: [1 3 5 7 9 T T T T T 0 8 6 4 2]
#
# Modifiers: (A)ny, (C)ontrol, (S)hift, (M)eta, (N)othing
#
# Key {(window)} [key] [Context] [Modifier] [Action]
# Mouse {(window)} [button] [Context] [Modifier] [Action]
####################

Example Bindings

The following are some example key bindings:

# Keybindings
Key F1 A M Menu MenuFvwmRoot
Silent Key Menu A A Menu MenuFvwmRoot
Key Tab A M WindowList Root c c NoDeskSort, SelectOnRelease Meta_L
Key F1 A C GotoDesk 0 0
Key F2 A C GotoDesk 0 1
Key F3 A C GotoDesk 0 2
Key F4 A C GotoDesk 0 3
Silent Key Super_R A A Exec exec xterm

Next is are some mouse bindings. Mouse bindings can be linkned with functions to control what happens if you Click, Hold, Move, or Double Click. So in these example bindings we make use of the following functions

# MoveClickX MoveCommand ClickCommand DoubleClickCommand
DestroyFunc MoveClickX
AddToFunc MoveClickX
+ M $0
+ C $1
+ D $2

This function is useful because now we can bind things to moves (M), clicks (C) and double clicks (D) in the same Context (window button, title bar, etc). Now the mouse bindings.

# Window Button Locations [13579 Title 08642]
Mouse 1 1 A Menu MenuWindowOps
Mouse 1 2 A MoveClickX Nop Close Destroy
Mouse 1 4 A Maximize 100 100
Mouse 2 4 A Maximize 0 100
Mouse 3 4 A Maximize 100 0
Mouse 1 6 A Iconify

Next we also have to bind action for when grabing the title bar to move a window or the window border to Resize it. Notice how these bindings use different contextes for this.

# Windows Other
Mouse 1 T    A MoveClickX Move Raise Maximize
Mouse 1 FS   A MoveClickX Resize Raise Nop
Mouse 4 T    A MoveClickX Nop Raise "WindowShade True"
Mouse 5 T    A MoveClickX Nop Raise "WindowShade False"
Mouse 1 R    A Menu MenuFvwmRoot
Mouse 2 R    A WindowList
Mouse 3 R    A Menu MenuWindowOpsLong
Mouse 1 I    A MoveClickX Move Nop Iconify
Mouse 3 T    A Menu MenuWindowOps
Mouse 3 I    A Menu MenuIconOps
